Alright. So today I have one of the dodgiest tutorials for you Skyline owners - or RFknB’s since you’re reading this.

Alright. So today I have one of the dodgiest tutorials for you Skyline owners - or RFknB’s since you’re reading this.
The Nissan Skyline is one of the easiest cars to modify, and today I will show you how to hide those pesky warning lights so you can now assume nothing’s wrong with your project.

In this tutorial I show you how to hide your warning lights

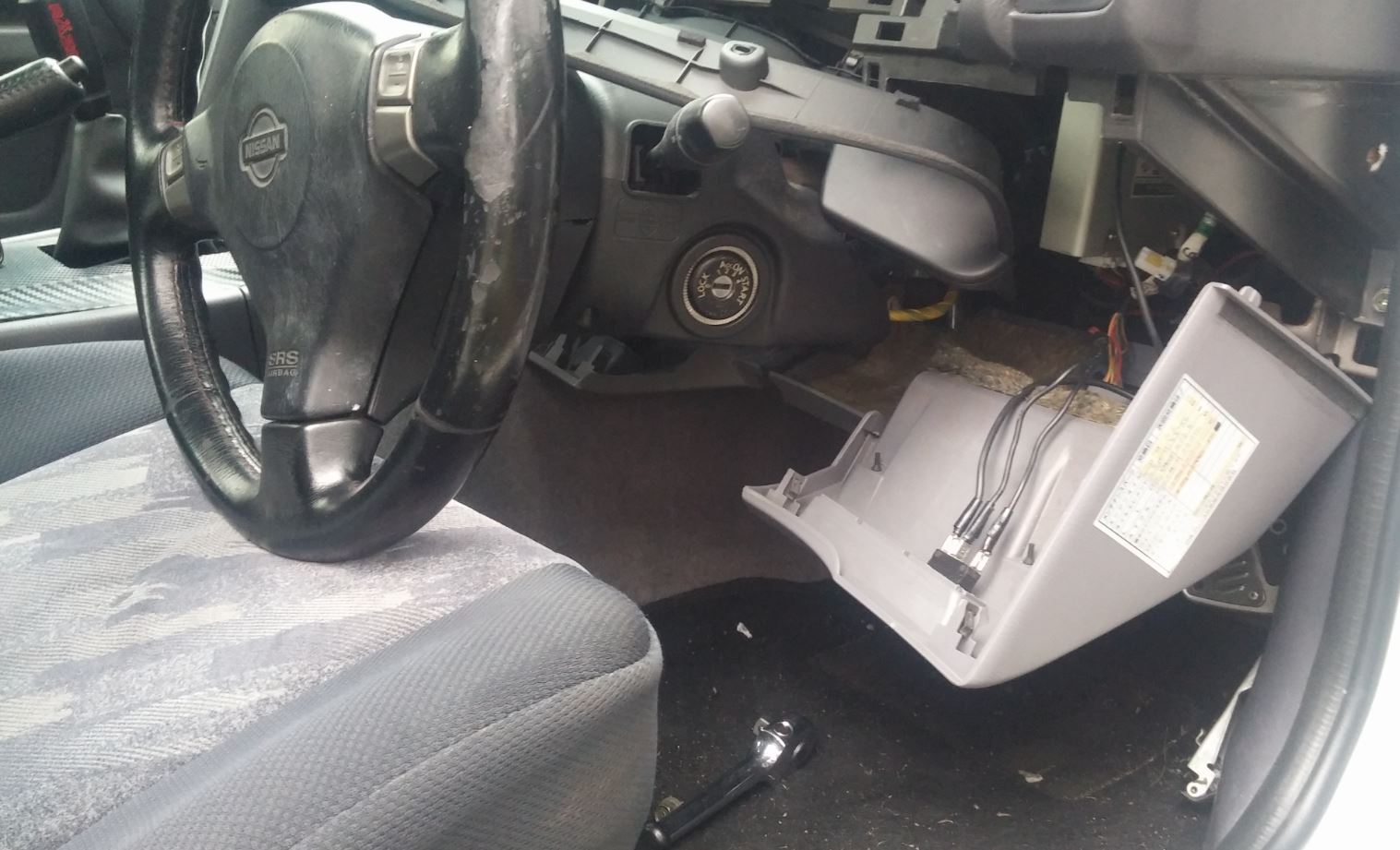

First of all you need to get to the dash cluster, and good news for us, it’s just a couple screws away.
On the right by the bonnet release there are two 10mm bolts, while on the left there is a Philips screw. Take them out and pop off the plastic, or if you own an R32 you can use a hammer and chisel and smash it off.
Under the steering column there is one 15/32” screw on either side - once again, you R32 owners can drill out these screws since I know you’ll just cable tie the steering column back on.
The steering wheel and column will now fall onto the driver seat.

In this tutorial I show you how to hide your warning lights

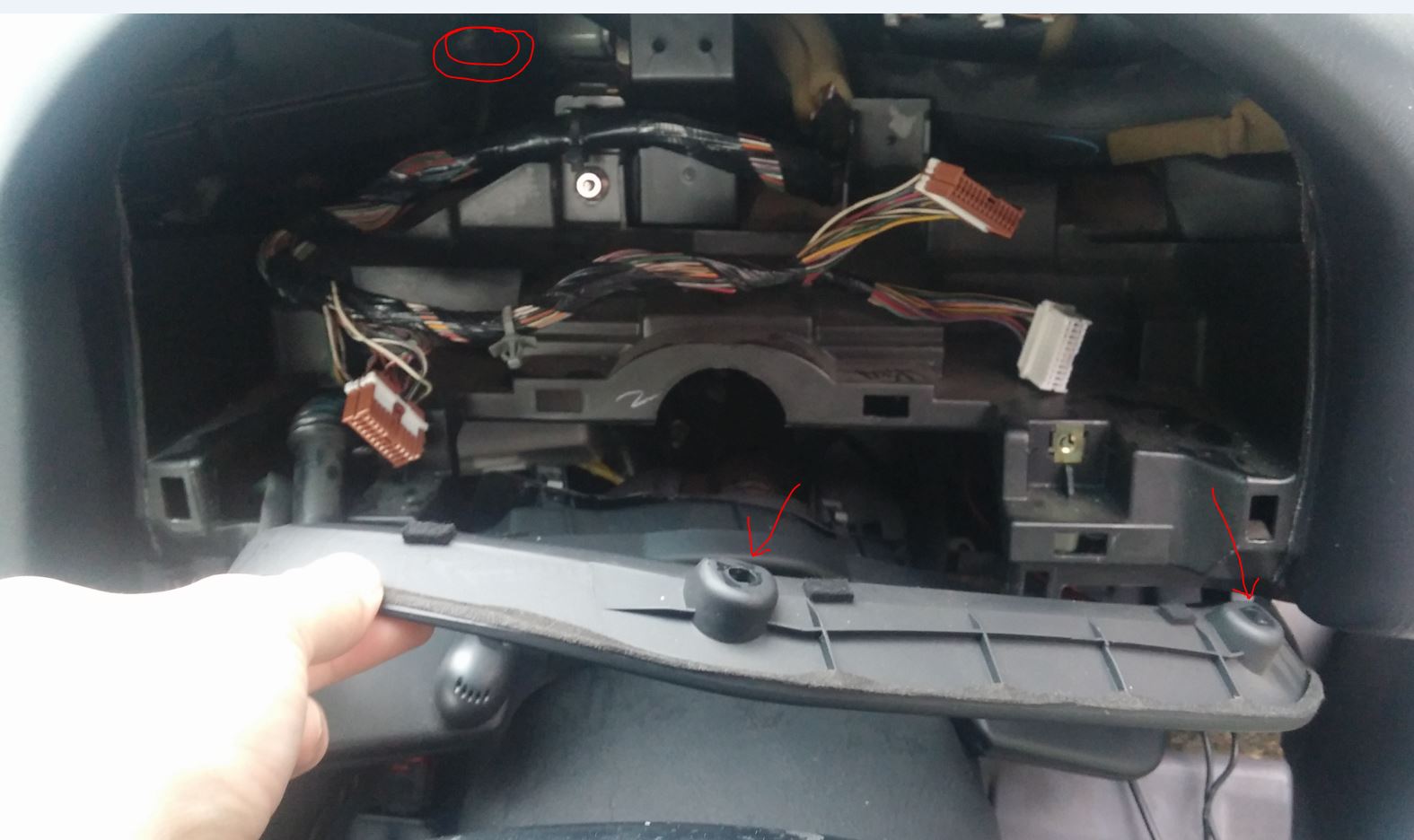

Next up, there is a shroud at the front. 2 Philips screws and this can be pulled forwards - watch out for the air con sensor at the left. At the back I have circles the screw you will undo when replacing your pedals, you can ignore this unless you are doing a manual conversion.

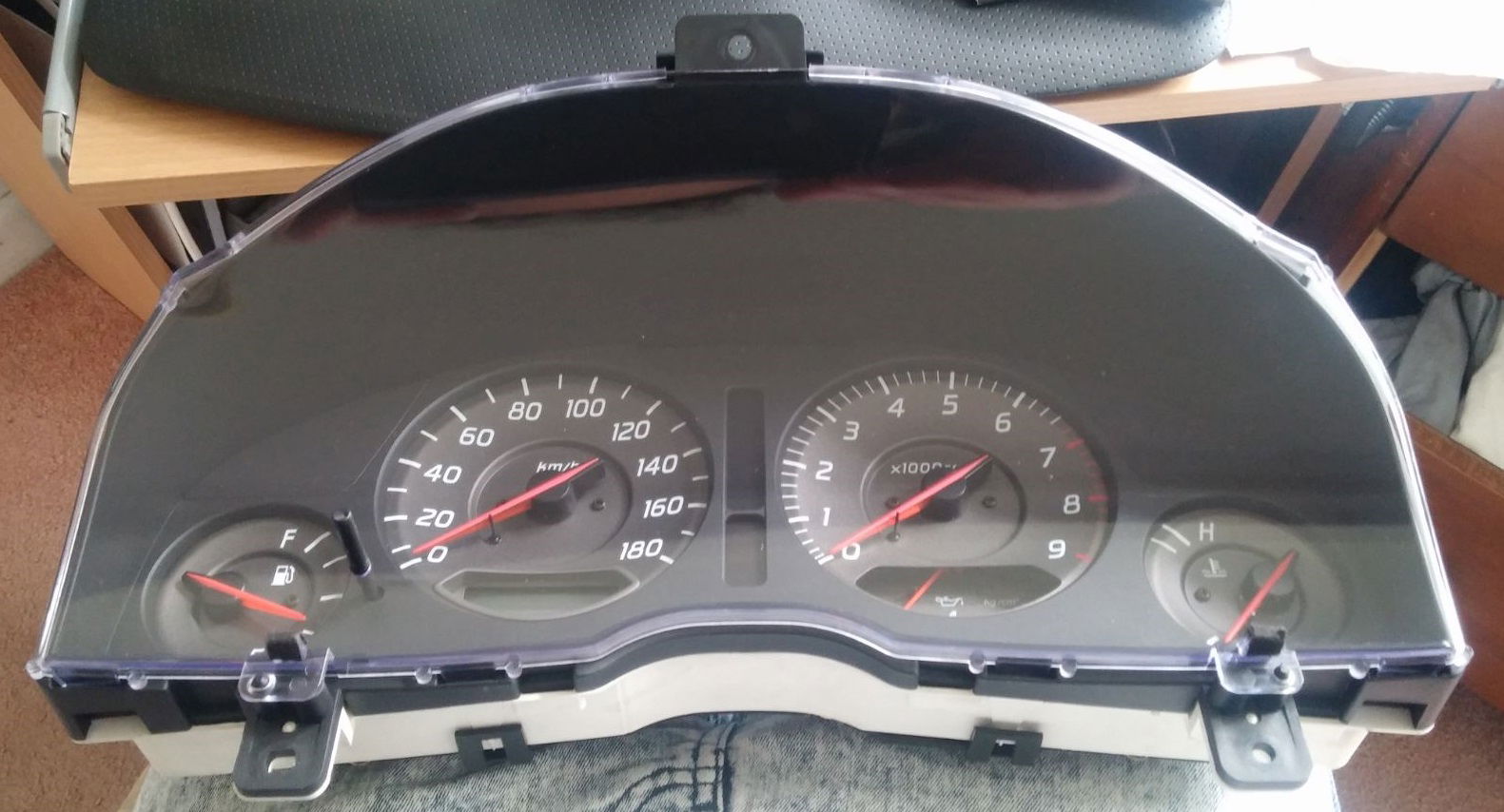

Around the dash cluster are 3 Philips screws, and then it pops right out. Unplug the cluster and rip it out.

In this tutorial I show you how to hide your warning lights

This step is not necessary, but it is good to see your warning lights more clearly.

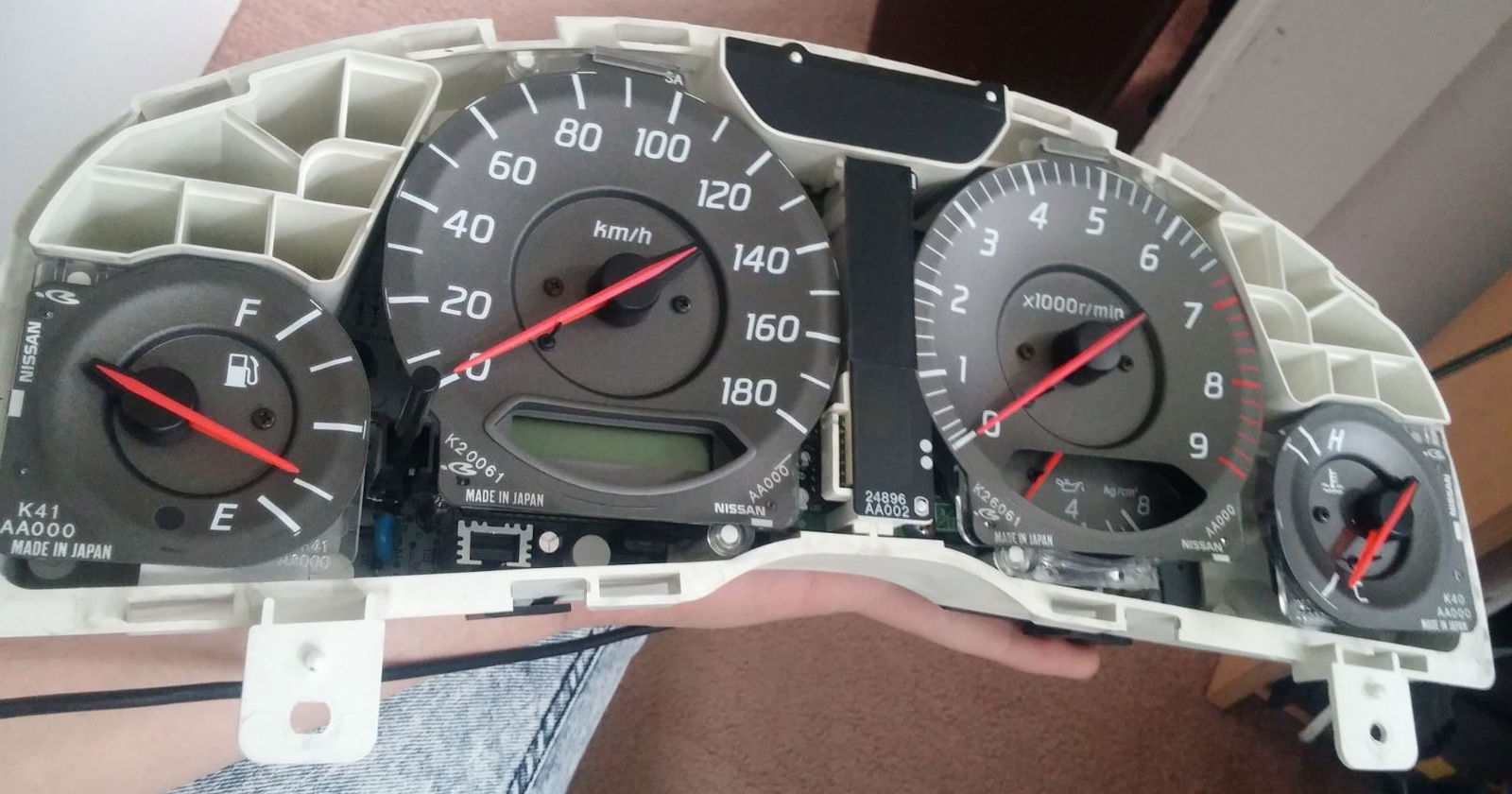

There are 10 tabs around the cluster (you can see one at the top of this photo) that you can push by hand and remove the front panel.

In this tutorial I show you how to hide your warning lights

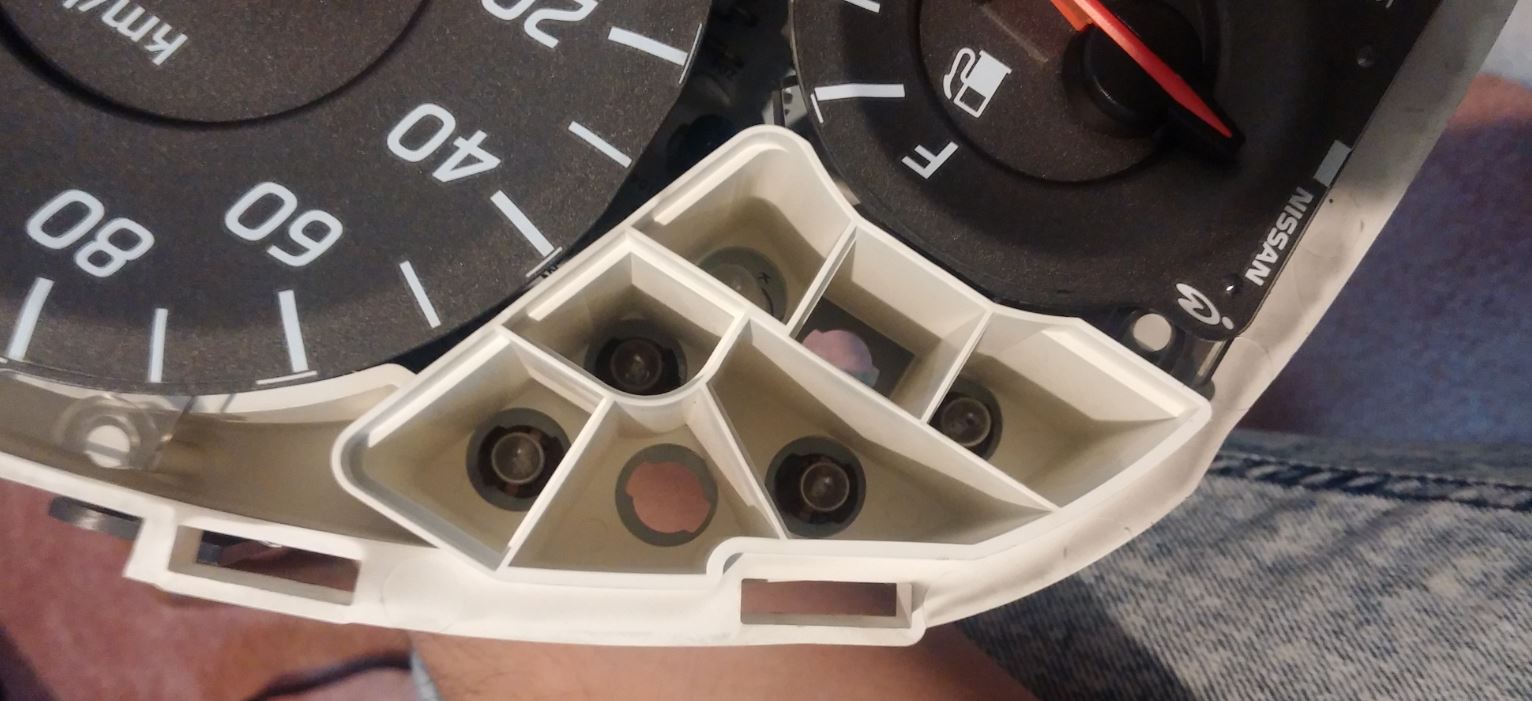

When it’s off you can see the lights in their own surrounds, a big like eggs in a wasp nest.

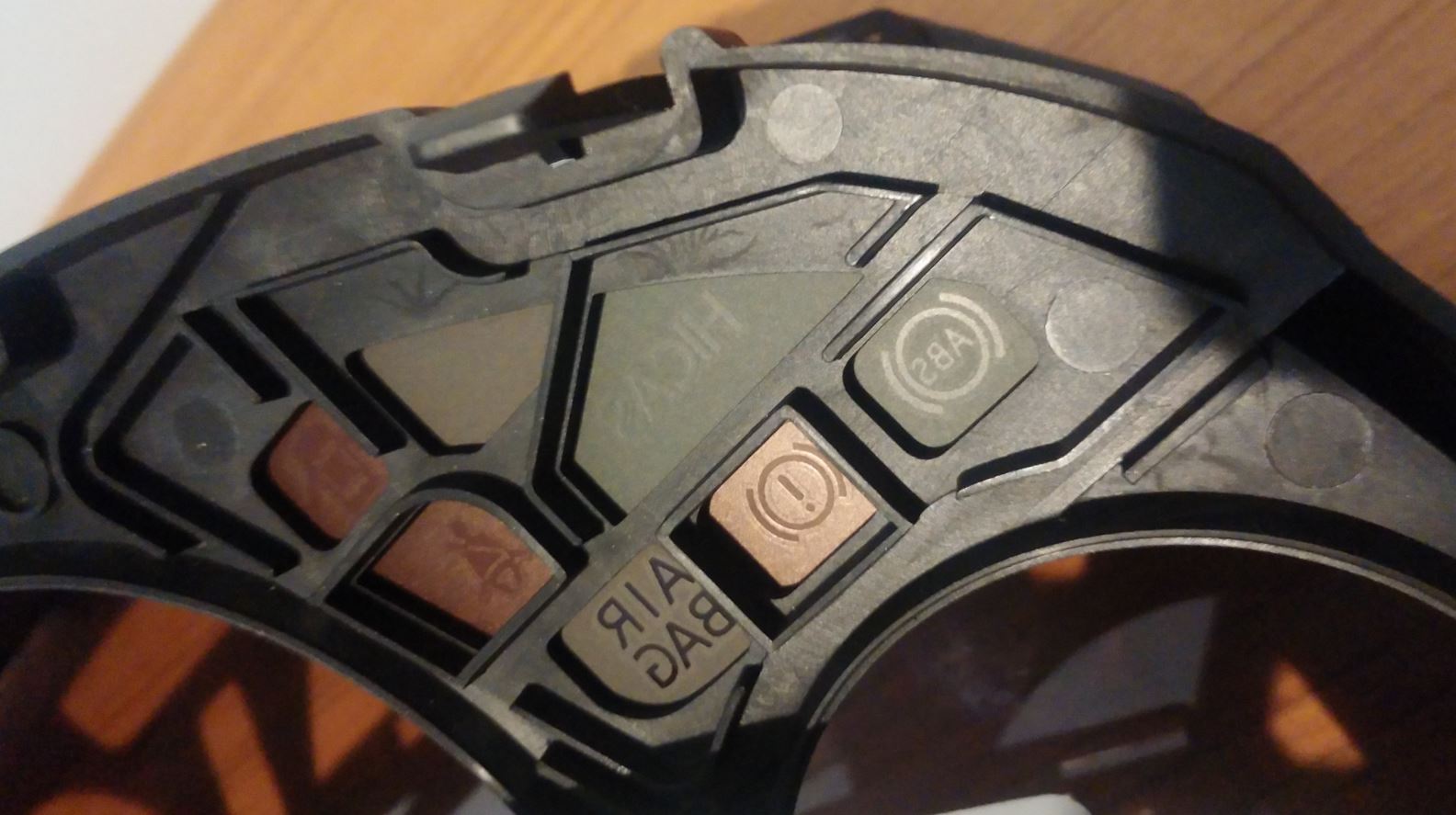

Some lights cannot be taken out (the airbag light for example); in this case use some black electrical tape over the “wasp nest” to hide the bulb.

In this tutorial I show you how to hide your warning lights

In my case the seatbelt light was on so I couldn’t get a WoF for my car.

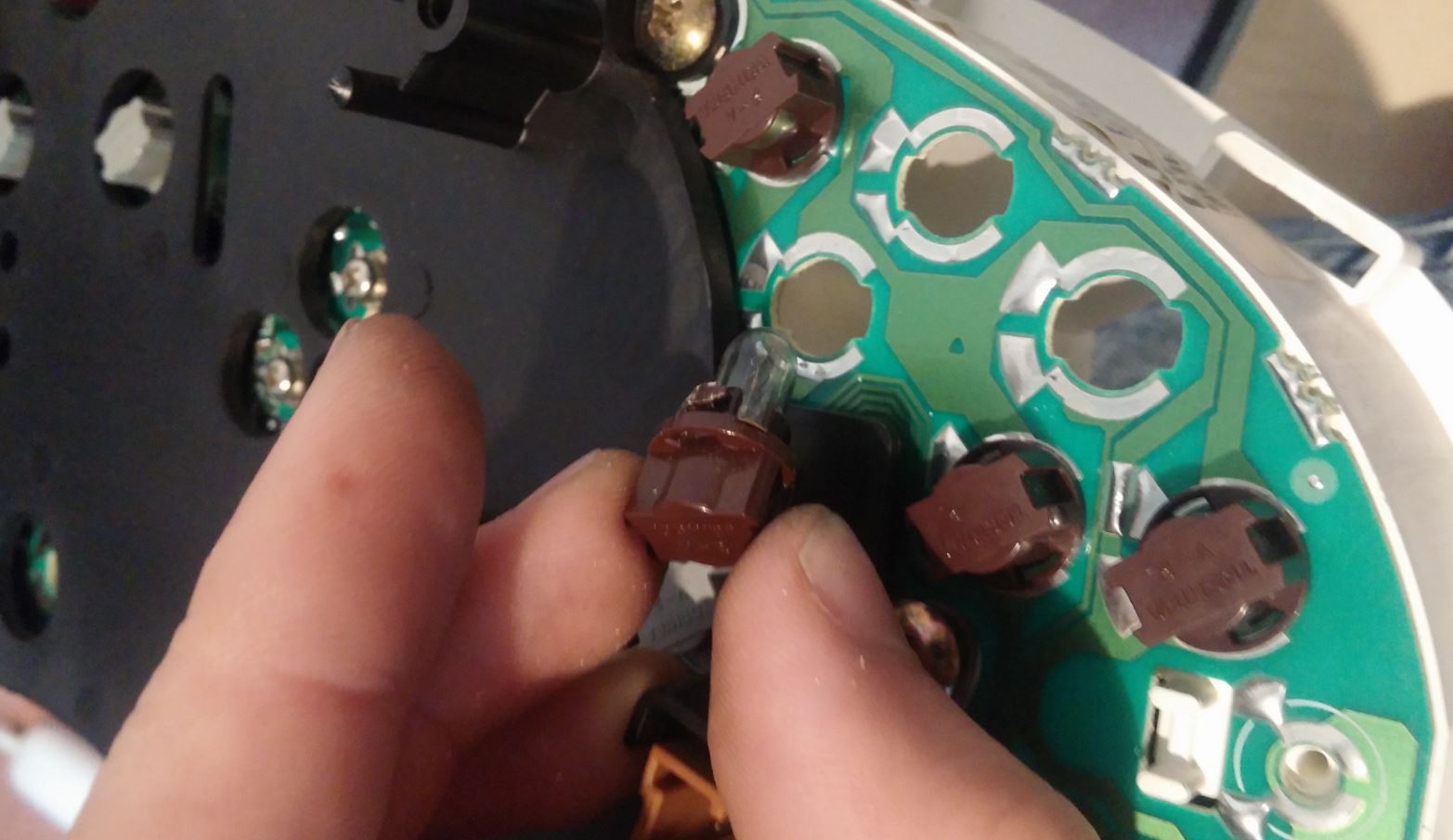

Give it a little twist at the back and move it somewhere else - the HICAS area or the ATESSA-ETS area for example.
Now your car is super-dodgy and there will be no problems showing (until you plug in the code reader and watch the list grow).

In this tutorial I show you how to hide your warning lights

While it’s out, it is a good time to hide the auto display if you converted to manual - the strip of black tape down the middle.

In this tutorial I show you how to hide your warning lights

Sponsored Posts

Comments

In this tutorial I show you how to hide your warning lights
Random_Hero

And it’s also a good time to fix the damn tachometer! Friggin annoying! Lol!

05/21/2016 - 03:50 |
2 | 0
Oop_333

Newer clusters use LED’s. You’ll have to use a soldering gun, and gently heat and pry the LED’s off. Same concept though!

05/22/2016 - 19:51 |
0 | 0
Ian Hankins

almost be easier to just get a code scanner and clear them off.

05/23/2016 - 12:20 |
0 | 0
Anonymous

or, if you are bloody lazy like i am just put duct tape on them

05/23/2016 - 12:21 |
14 | 0
Kanjozoku

In reply to by Anonymous (not verified)

Or, just do this.

05/24/2016 - 06:37 |
30 | 0
In this tutorial I show you how to hide your warning lights
whitflame69

but why ? sorry if I don’t understand the reason

05/24/2016 - 20:38 |
0 | 0

This can be helpful if there are invalid warnings, for example my car tells me the automatic gearbox isn’t showing - I swapped it for a manual gearbox. In this case the AT light is always on.
The reason why I hid the light is because the seatbelt sensor is showing an error so it will fail the bi-annual warrant of fitness test. The seatbelts still lock under pressure, and a fault code reader might be able to fix the error but I can’t afford it at the moment.
The main reason why people do this is to hide problems with the car so they can sell it to an unsuspecting buyer under the influence that the car is in perfect working order. However they can be sued and have legal claims brought against them if the buyer finds they were misled.

05/24/2016 - 21:51 |
0 | 0
