How Do Carburettors Work?

Only really found on classic cars now, carburettors were at one time the main solution for effective air-fuel mixing. So how did they work?
How Do Carburettors Work?

Chances are, if you’re below the age of 25, you’ve probably never come into contact with a carburettor. Fuel injection now completely dominates the automotive world, giving a more consistent and reliable fuel mixture to the engine. But pop back to the middle of the 20th Century and carbs were the norm in almost every motor car, from Austin 1100s to Aston Martin DB5s.

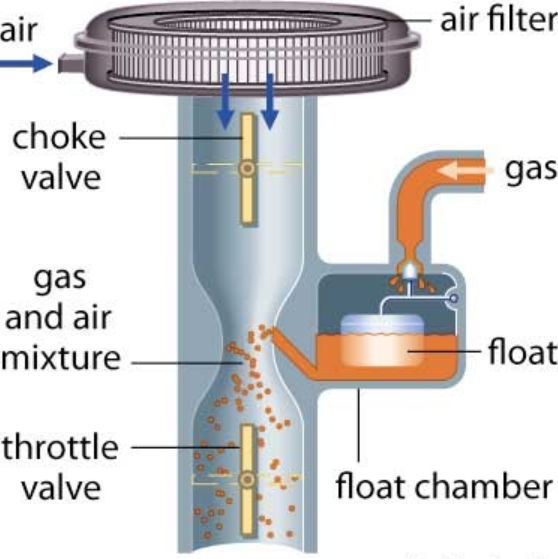

Carburettors are cylindrical components found on the side of older car engines and are used to allow the right air/fuel ratio to enter the engine’s cylinders at a required rate. The basic outline can be seen below:

How Do Carburettors Work?

The carburettor works using pressure drops through a venturi and explores a fluid dynamics theory called Bernoulli’s Theorem. Bernoulli basically came up with a pressure balancing equation that proved that fluids will always move from a high pressure area to a low pressure area.

As air is pulled through the air intake, it enters the carburettor and reaches a restriction called a venturi. As the area becomes smaller, the pressure of the air rises, accelerating it out to a lower pressure area on the other side of the venturi. Feeding into the constriction is a small tube - known as a jet - that travels from a float chamber (which contains the fuel) to the air chamber.

Bernoulli's Theorem...don't ask
Bernoulli's Theorem...don't ask

Due to the pressure drop created by the venturi, the fuel is sucked from its relative high pressure area through the jet and into the air stream as a spray. The amount of fuel entering the carburettor is then dictated by the difference in pressure from within the float chamber to the end of the jet, which is dependent upon the rate of air flow. The speed of the air flowing through the carburettor is governed by the engine speed and is therefore controlled by a throttle at the base of the carburettor chamber.

Single-jet carbs were extremely basic in their setup and therefore were modified in the mid-20th century to fulfil the needs of cars on sale. As car engines became more efficient and powerful, carburettor design also had to evolve as more air was needed fed into the system to keep the air/fuel ratio at the desired values.

How Do Carburettors Work?

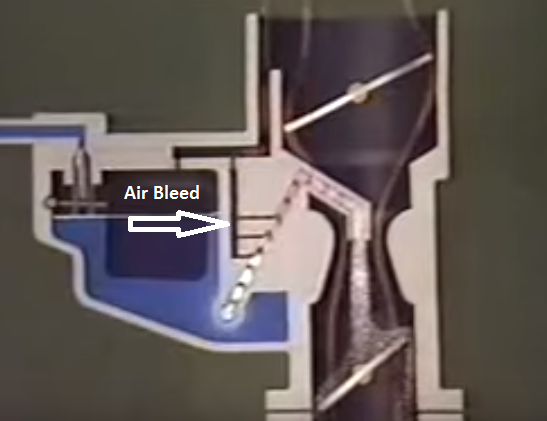

Therefore, something called an air bleed was integrated into carburettor design which restricted the amount of fuel entering the engine by increasing the amount of air in the ratio. Air was bled into the jet in small amounts to basically pre-mix the fuel entering the air chamber, increasing the air quantity in the ratio.

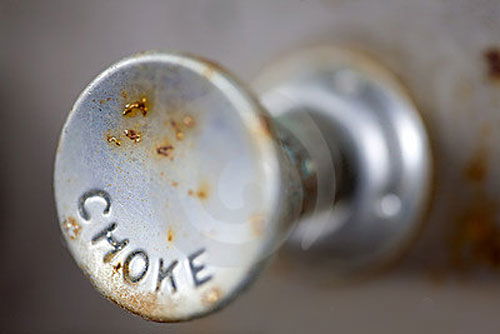

One of the downsides of carburettors has always been the need for a choke. When an engine is started cold, the air/fuel mixture must be richer to keep the engine turning over, therefore the choke is manually closed at the upper end of the carburettor to reduce the amount of incoming air. This closure also means that the suction created by the pressure drop is concentrated on the inlet of fuel, further decreasing the air/fuel ratio.

How Do Carburettors Work?

Modern fuel injected cars have an automatic choke simulated through a ‘start-up’ fuel map which is programmed into the ECU to create a rich mixture from a cold start, making the operation of a choke non-existent nowadays.

Another problem carburettors had was the lack of air flow when a car was sitting at idle which resulted in a lack of fuel entering the venturi. This had to be solved using an idling jet, which injected a small amount of fuel at the lower end of the carb at the throttle valve. Using a small amount of air sucked from the venturi, a sufficient mixture could be supplied to the engine to keep it turning over at idle. Again, fuel injection systems have been fully developed to eradicate these problems, making the carburettor all but redundant.

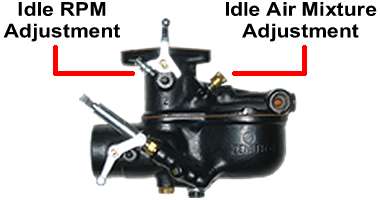

A carb from a Ford Model A, showing the adjustment for the idle using screws
A carb from a Ford Model A, showing the adjustment for the idle using…

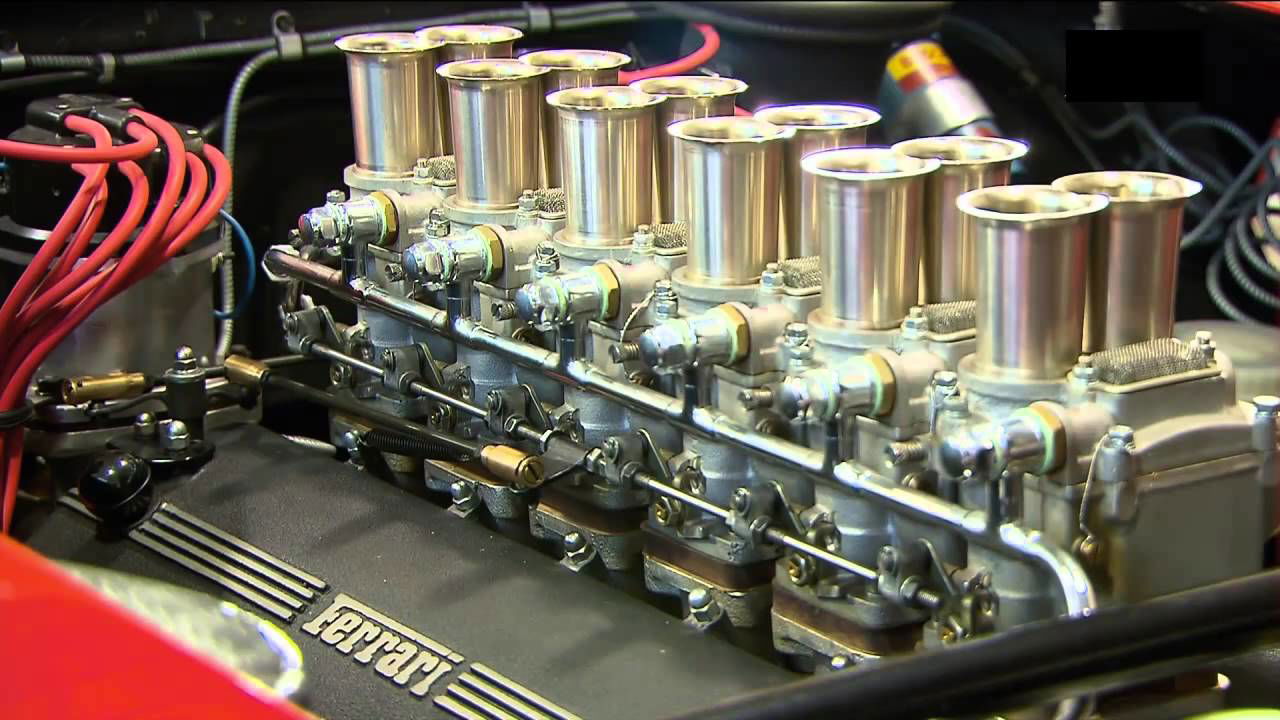

Carburettors were developed further and further throughout the mass-production of cars in the last century and in many high performance cars of the time, you will often see double and triple carbs used to cope with the demands of the engine. They were used all the way up until the 1990s, from which time fuel injection was more than capable of taking over the reins. With carburettors being maintenance-heavy due to a constant need for tuning to keep the engine running smoothly, they are very much a thing of the past with the only exception being some very basic cars in developing markets.

But if you ever plan on restoring a classic or simply driving an older car as a daily, hopefully you now know the basics of what is an extremely important component from yesteryear.
